Jentschmann uses 35 kHz ultrasonic technology for cutting textiles, foils and plastics. This application is called ultrasonic cutting.

Jentschmann uses 35 kHz ultrasonic technology for cutting textiles, foils and plastics. This application is called ultrasonic cutting.

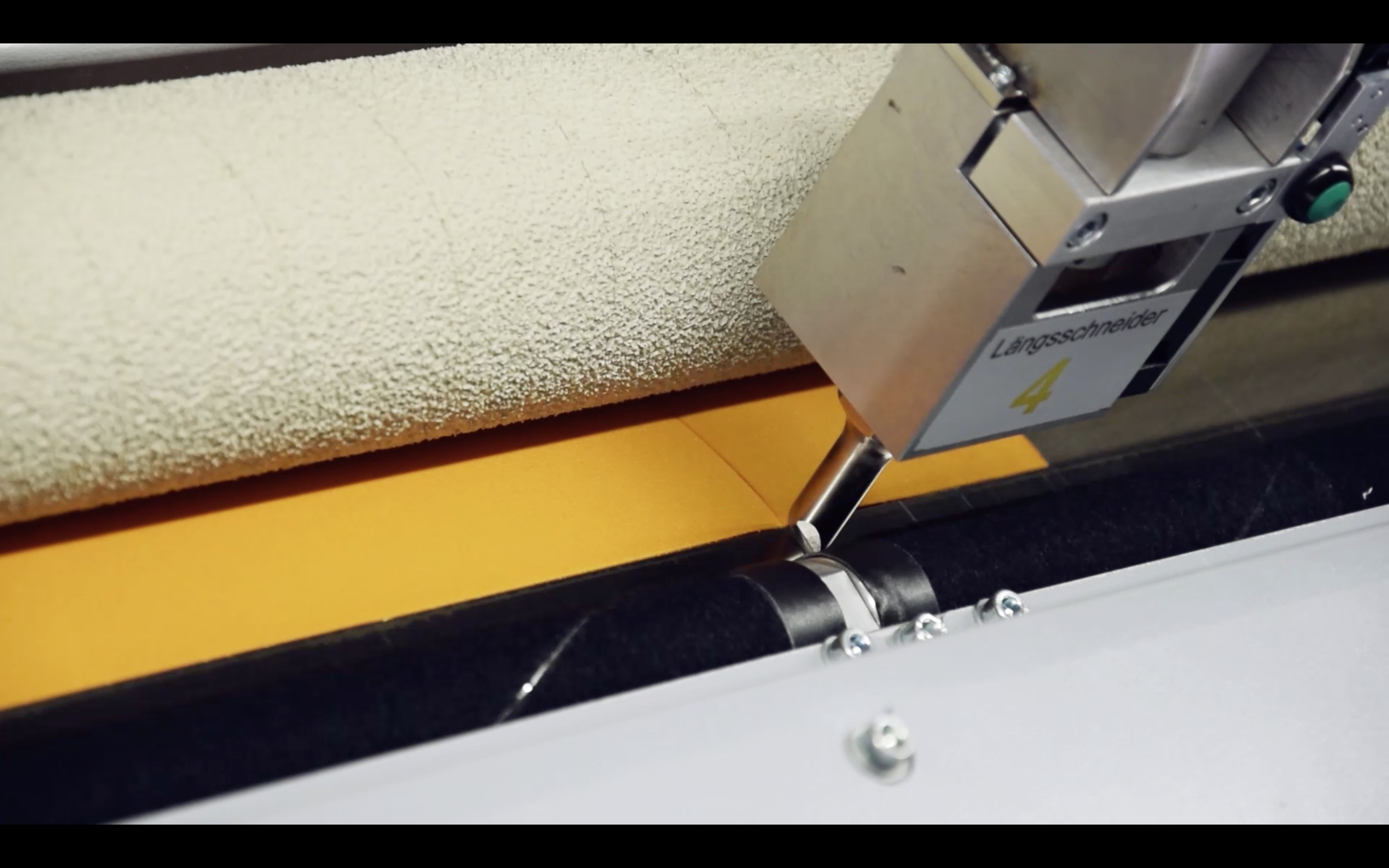

With the first method, the materials are cut directly with a suitable wedge-shaped horn – either by moving the horn or the material to achieve the desired cut.

The cutting edge separates the substrate, and fuses / seals the edge of the substrate.

When cutting with the ultrasonic horn (sonotrode) an anvil plate is needed to reflect the sound and get the substrates in vibration to produce heat. One example of this technology is the Jentschmann fabric-cutting machine Cumasix ™ – see photograph.

With the second method, the Jentschmann rotary horn is used for ultrasonic cutting.

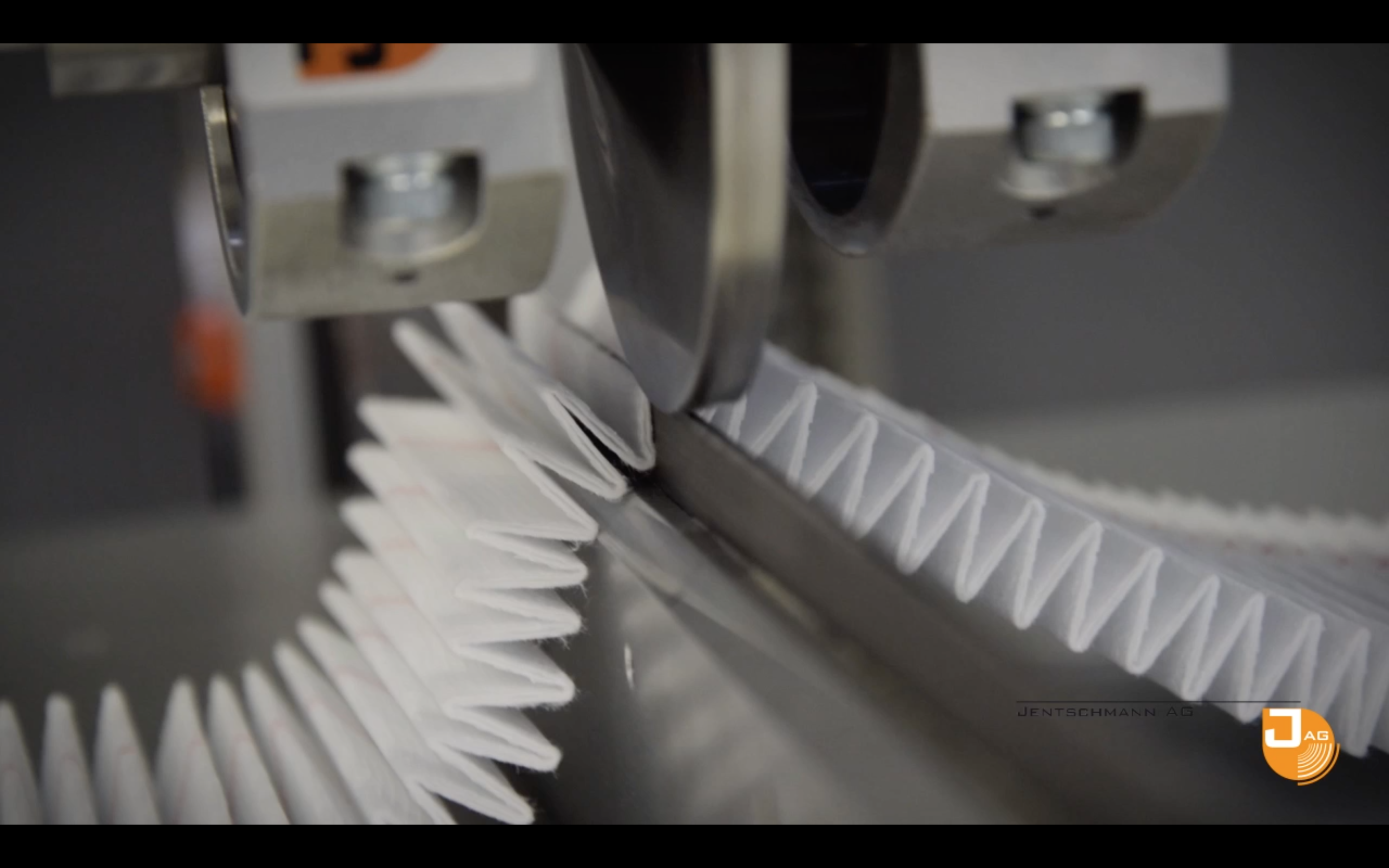

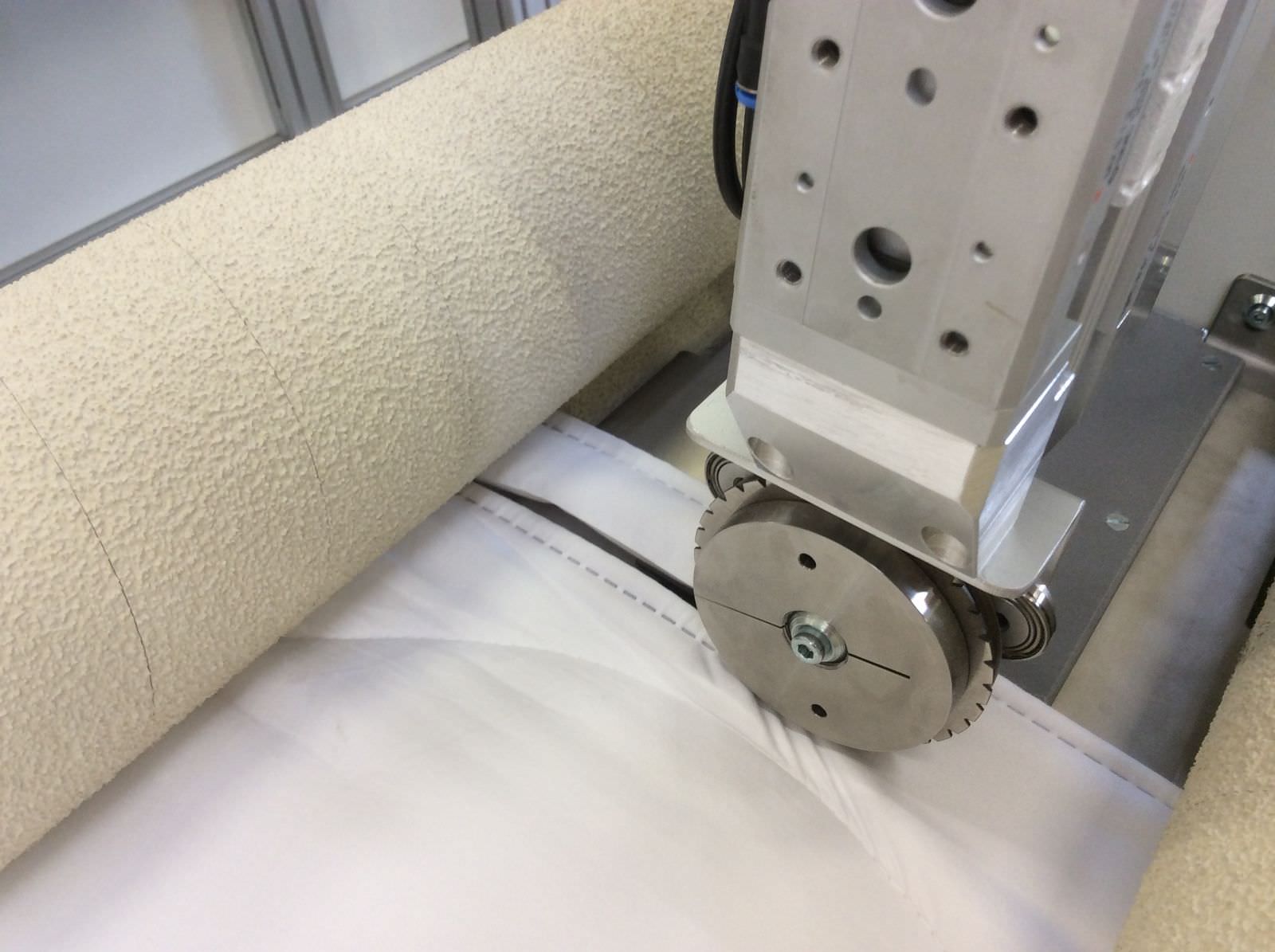

The rotating sonotrode transfers the sound through the substrate to be cut to an anvil cutting wheel. In this case the anvil wheel performs the function of separating the material and sealing the edges. The ultrasonic cutting wheel has the geometry of the desired cutting / sealing angle.

One example of the rotary ultrasonic cutting process is when separating and sealing filter media for the production of activated carbon filters.

Using a rotary horn for ultrasonic cutting has the advantage of reducing resistance during the cutting operation to minimize displacement of embedded materials (e.g. activated carbon), and eases material handling.

The ultrasonic cutting method can also be used for cut-welding.

In this case, two layers of substrate lying upon one another get cut at the same time. At the cut line the substrates are separated but the edges are bonded together – hence it is called “cutweld”.

Ultrasonic cutwelding is used in applications where, in addition to the sharp cut, a clean edge to edge weld (without any overlap) is needed.




Applications

Title
Hits
View all
Industrial Sewing
Ultrasonic Welding/Gluing
Cutting
Textile Solar Protection
Bedding + mattresses
Digi-Print-Solutions
  • LaserCut

    Die LaserCut Pro wurde speziell für die Verarbeitung des Webtex Bandes von…

  • ScreenCut

    Cutting machine for pvc screen and awning production with up to 3.5m…

  • RCM Texband Cutter -…

    Texband Cutter 85 Fully equipped automatic cutting machine with driven film spool…

  • RCM Bartacker - KE-430

    Electronic bartacker Electronic automatic bartacker with direct drive type Brother RTC-KE430 for…

  • RCM Texband Cutter -…

    Texband Cutter 78 Automatic cutting machine with rigid film spool holder for…

  • Pillowmaster Ultrasonic

    PillowMaster Ultrasonic Ultrasonic cutting and welding machine for the production of pillows Video…

  • Punchy

    Flounce Cutter Punchy™ The Punchy™ is a computer controlled cutting machine for…

  • Panelmaster Ultrasonic

    Panelmaster Ultrasonic Ultrasonic cutting and welding machine for the production of duvets…

  • Weldsonic™ Filter

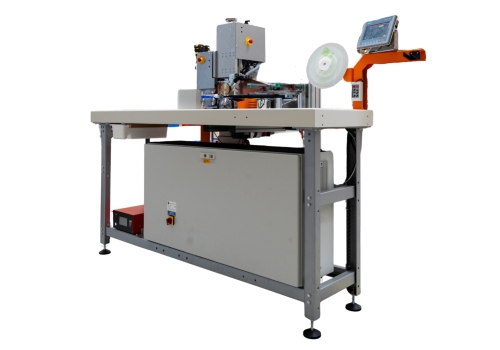

    Weldsonic™ Filter The Jentschmann Weldsonic™Filter is an ultrasonic welding machine for continuous…
