CUTTING MACHINE

SCREEN
CUT



Revolutionary

Design

ROLL

TO
ROLL

ROLL

TO

ROLL

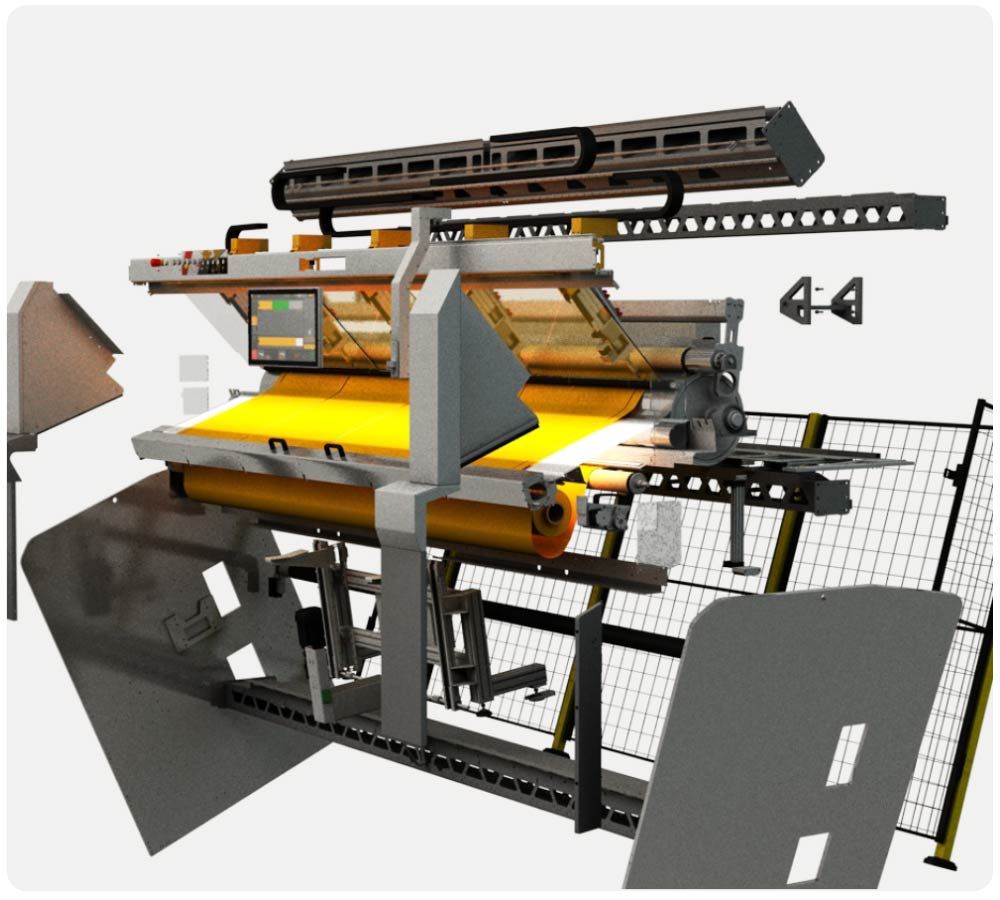

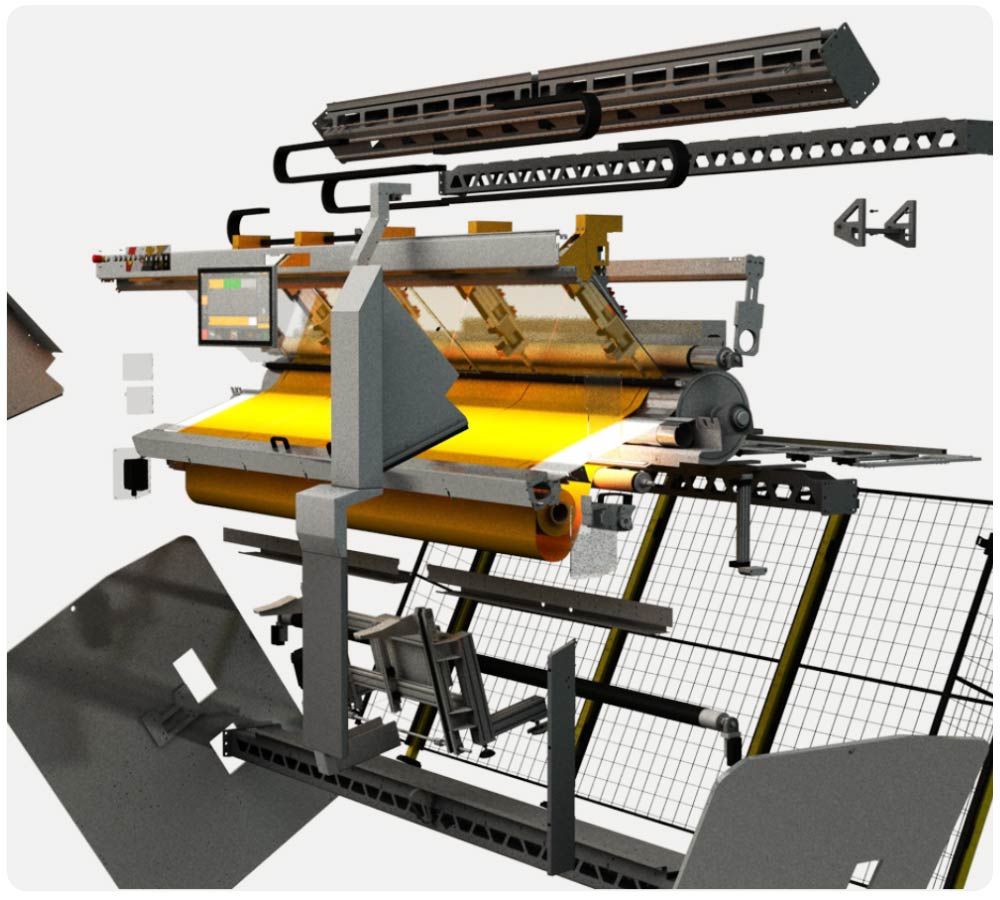

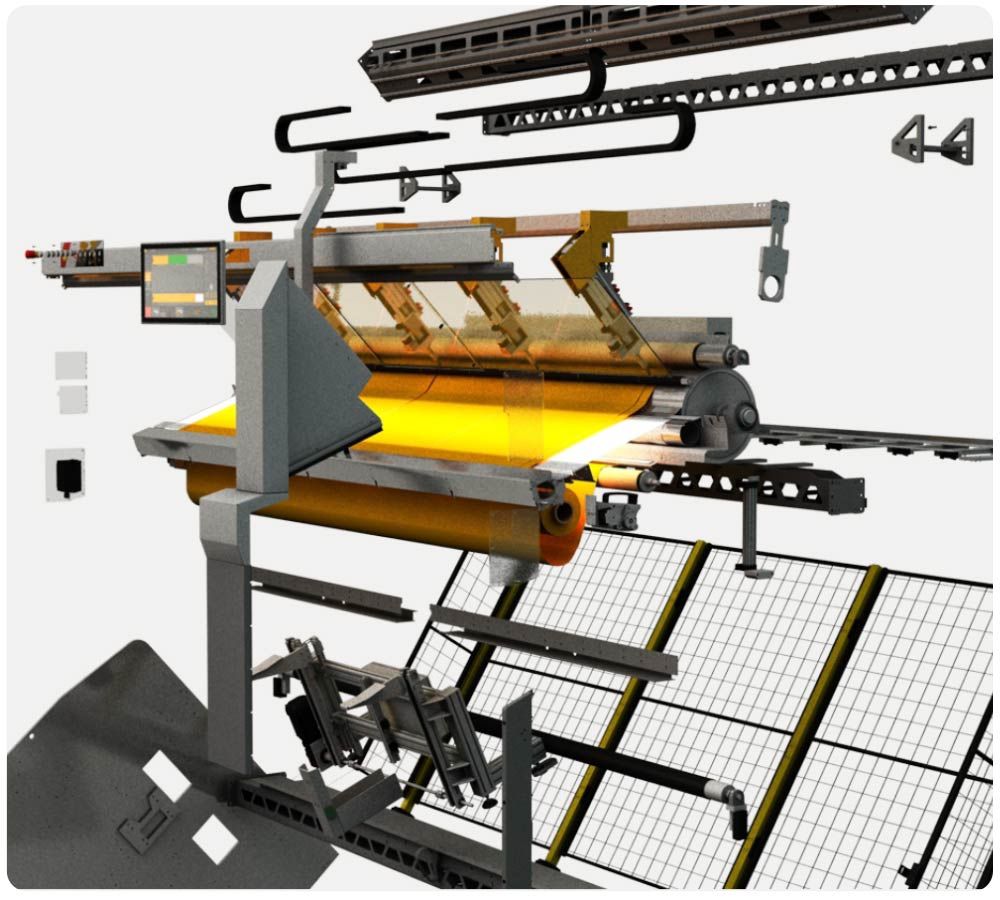

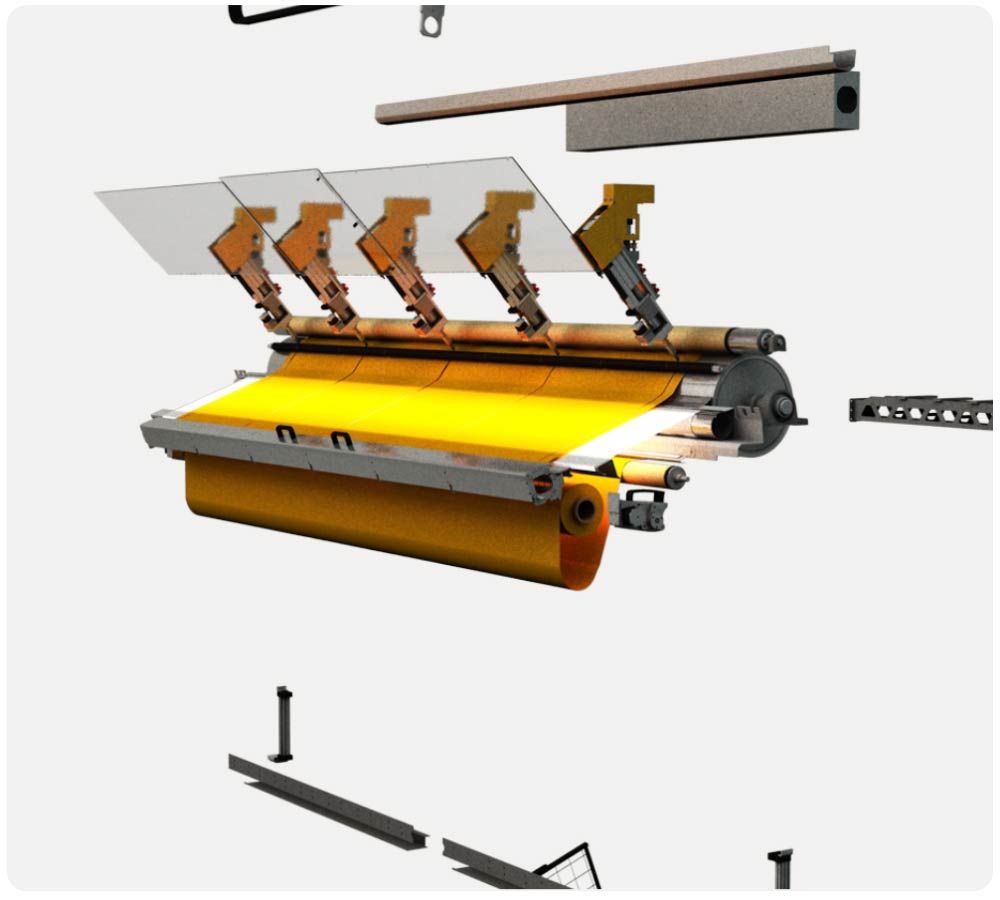

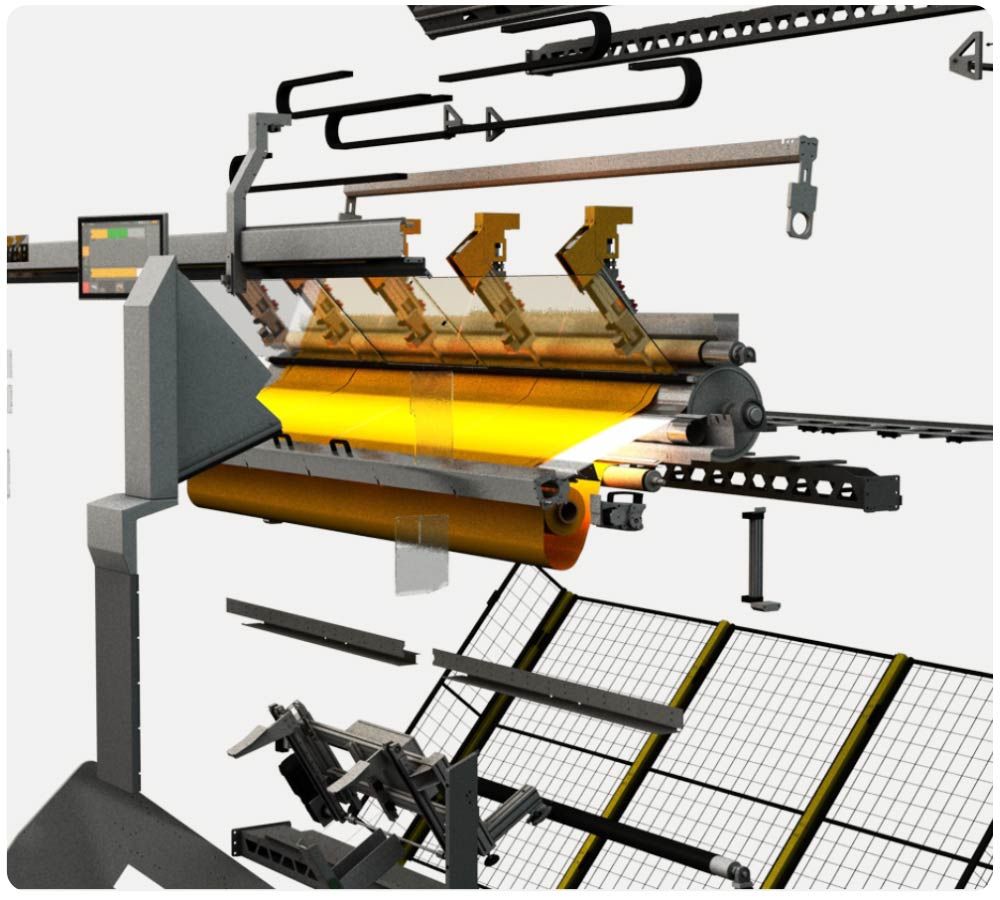

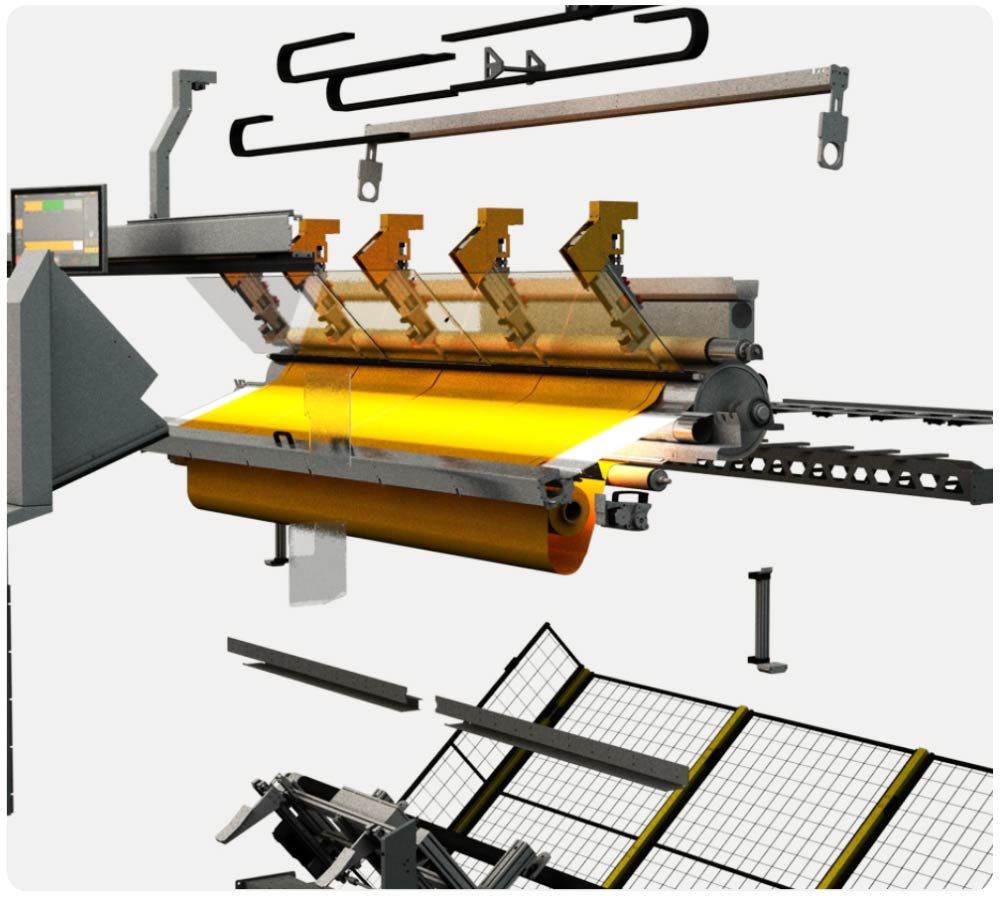

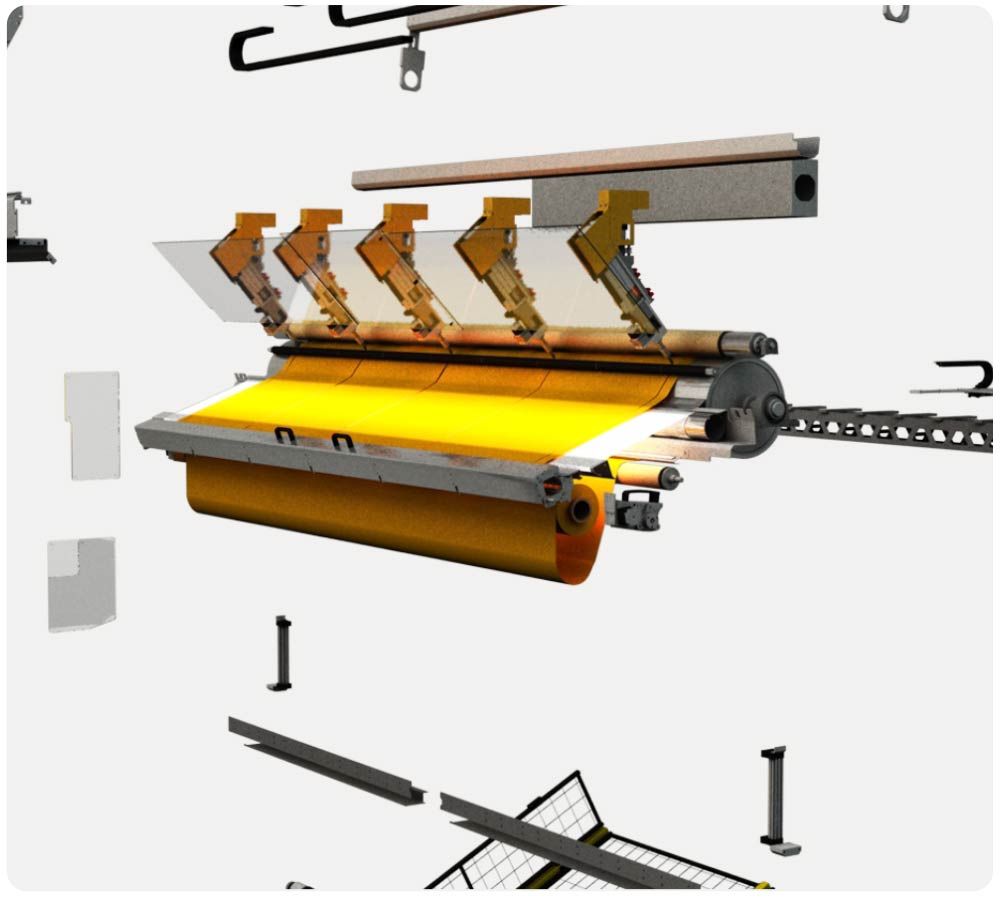

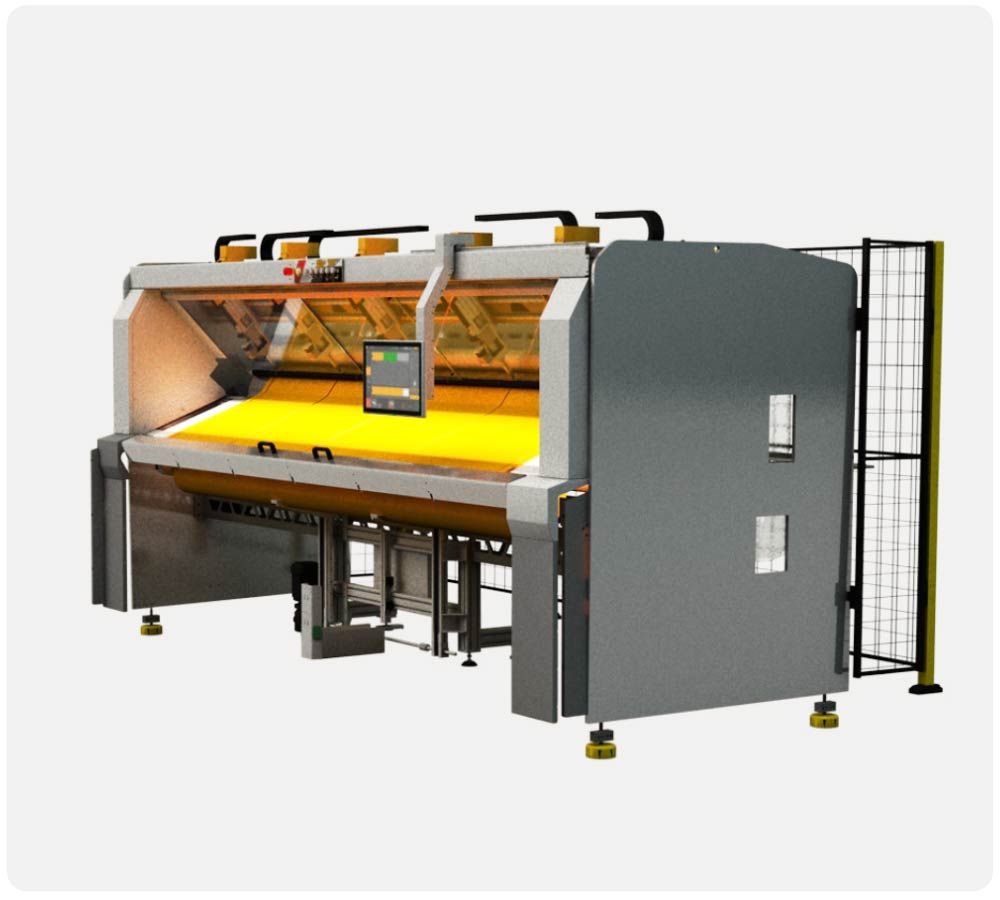

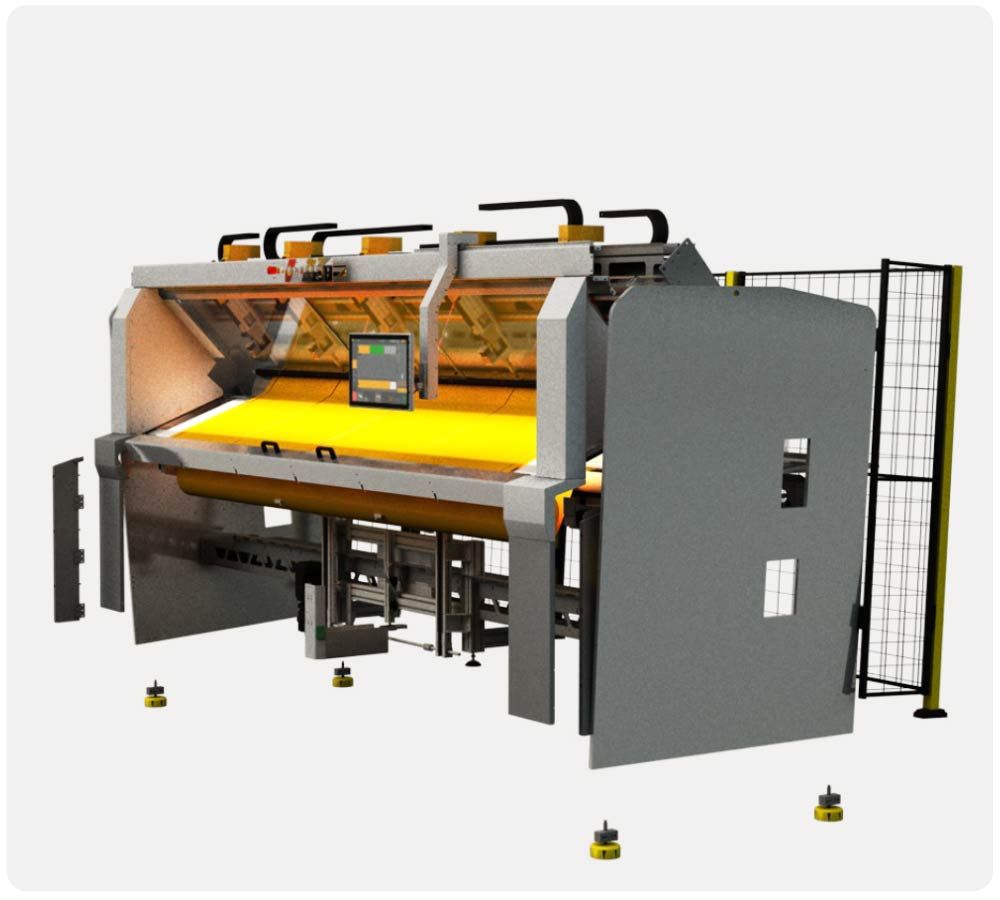

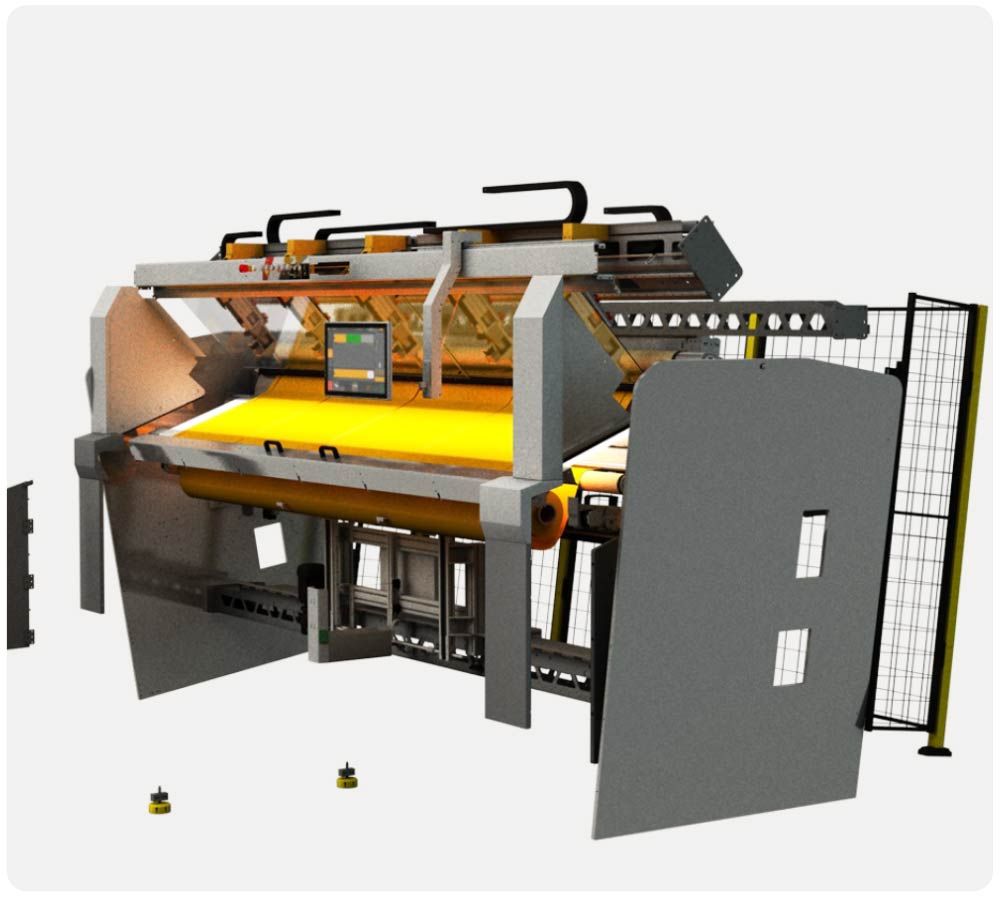

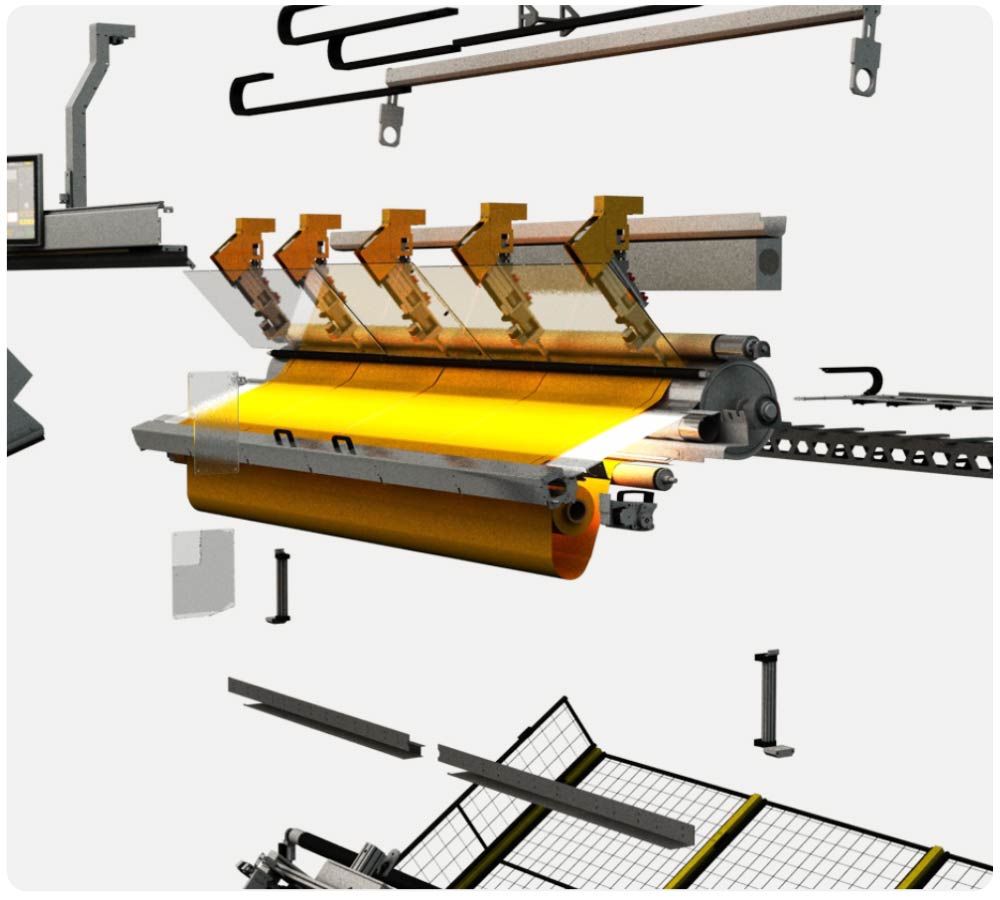

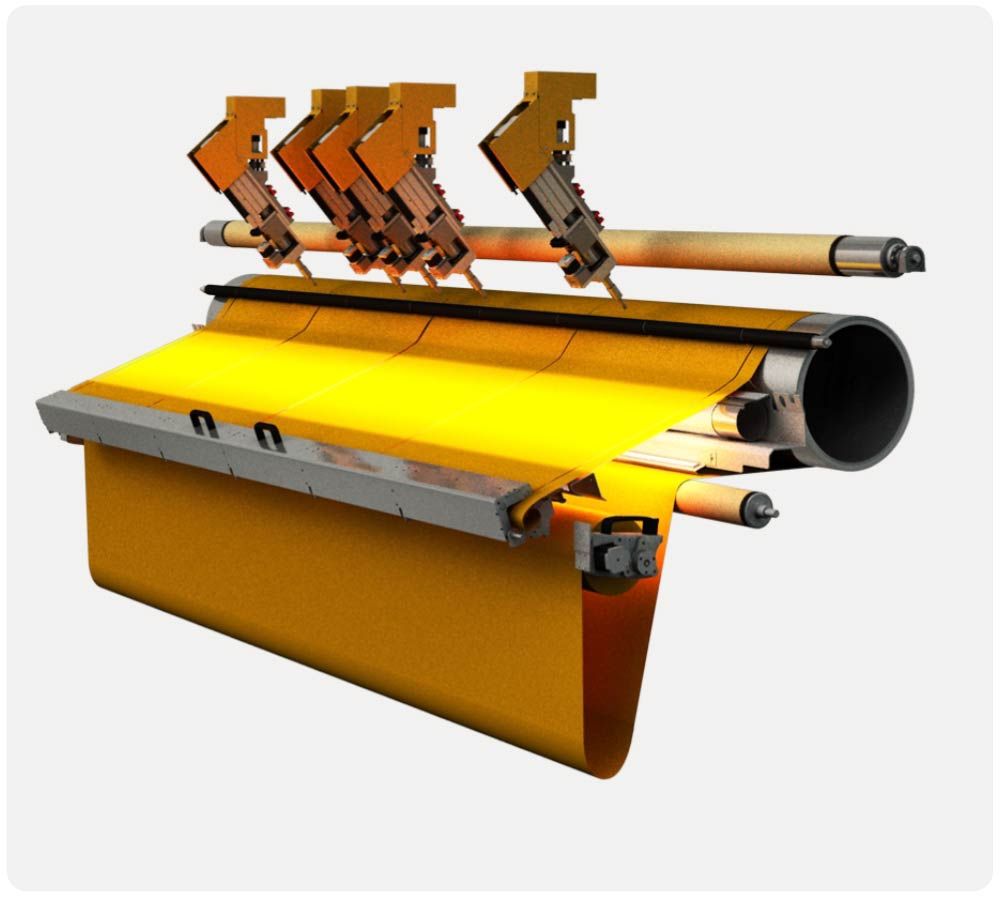

The revolutionary "from-roll-to-roll" design allows a significant increase in production capacity with a very small footprint of only 9m².

CUTTING TOOLS

The right cutting tool for all cases.

FROM SCREEN TO ACRYLIC

By using ultrasonic and cold knives, typical fabrics from exterior and interior sun protection such as acrylic, polyester, screen and Soltis can be processed.

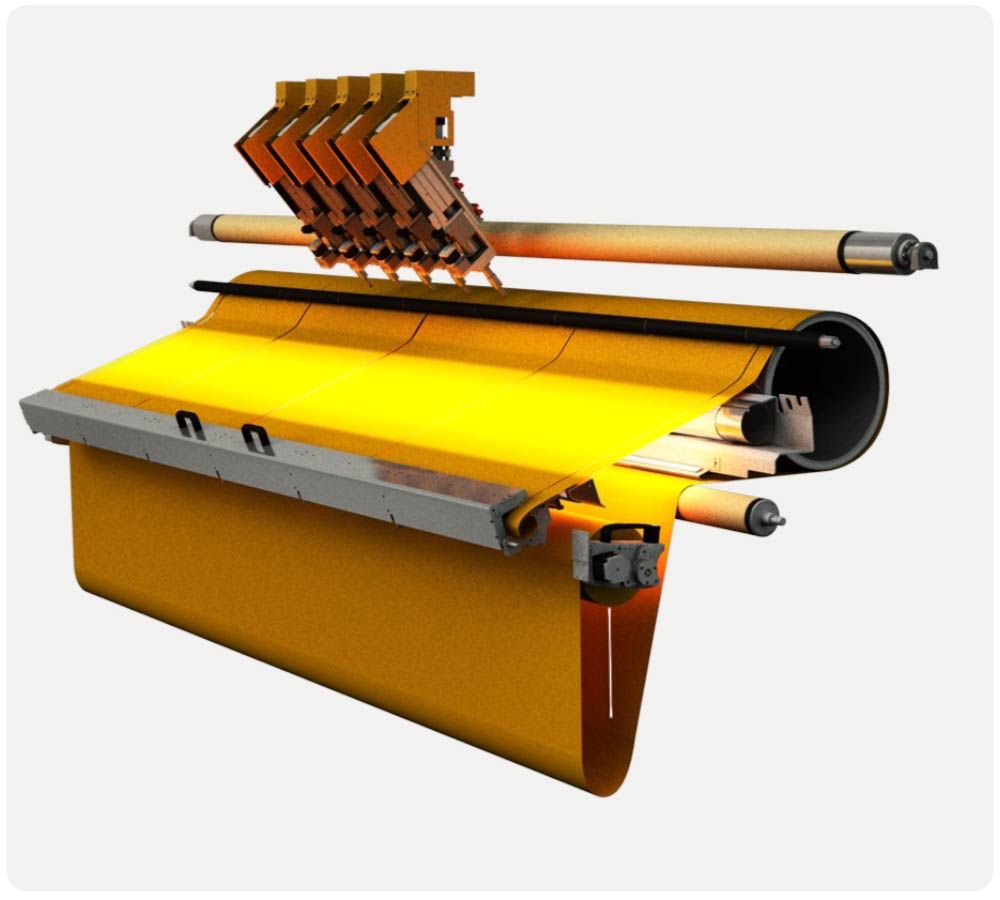

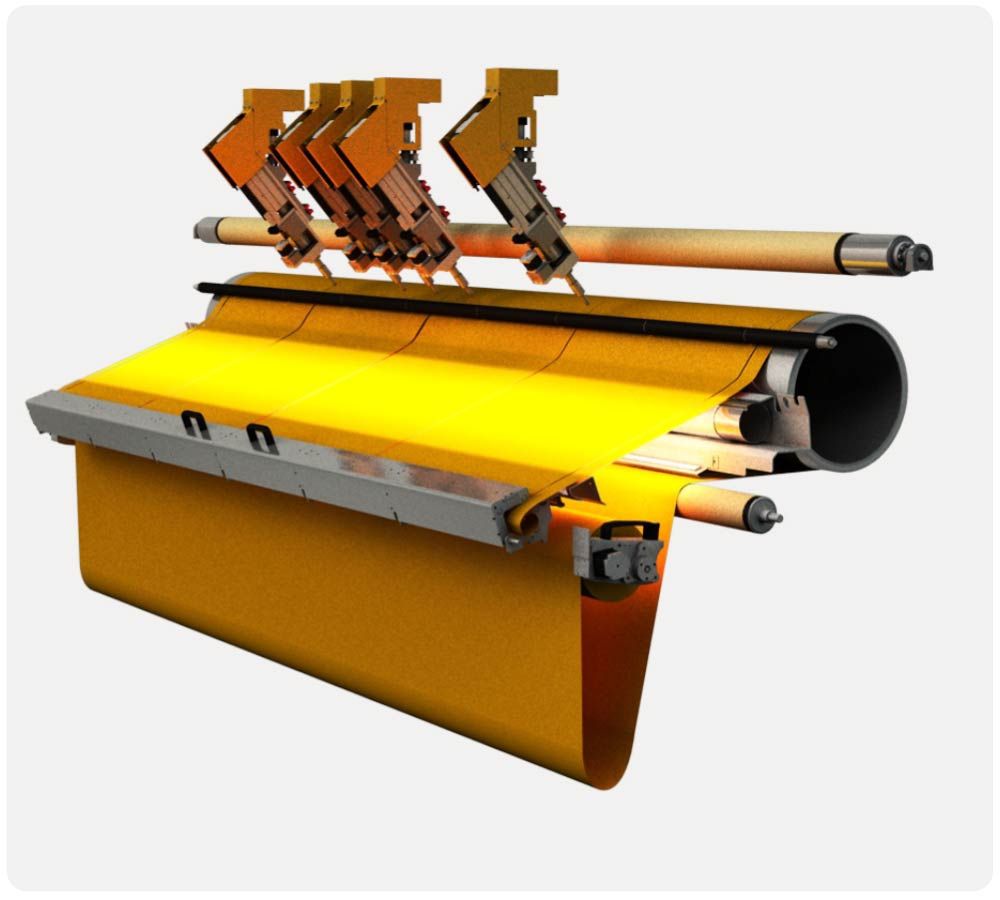

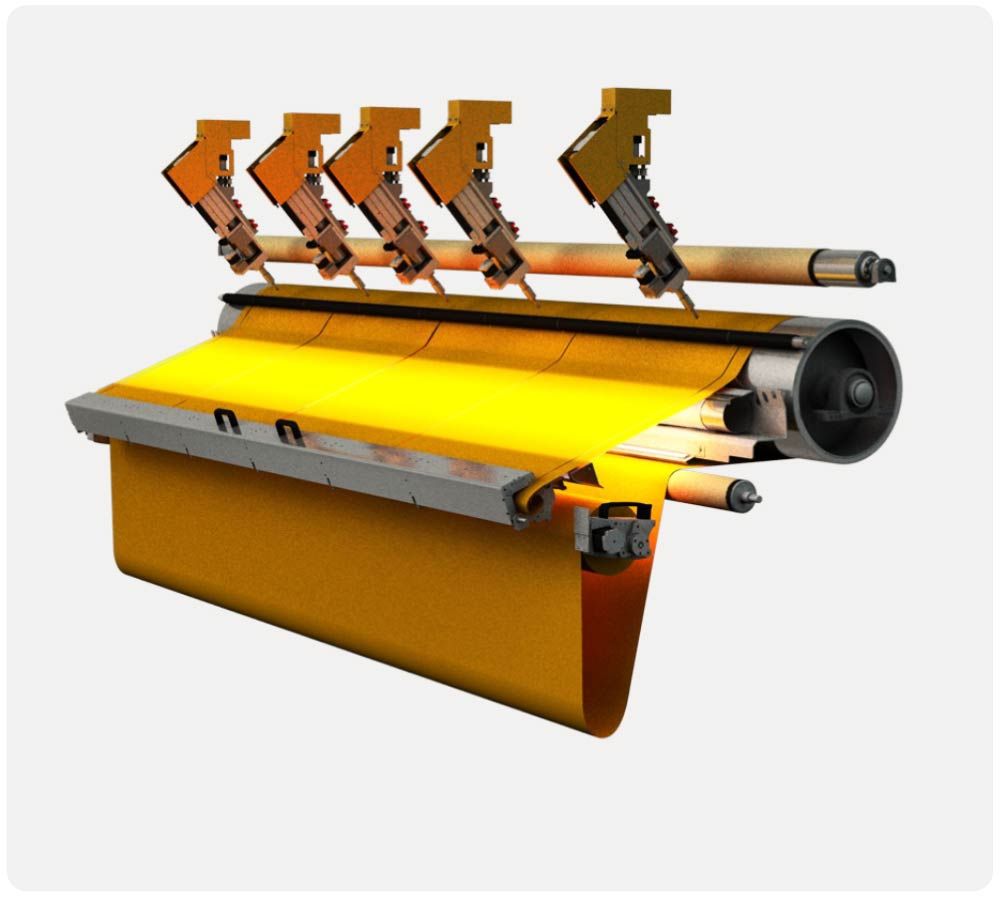

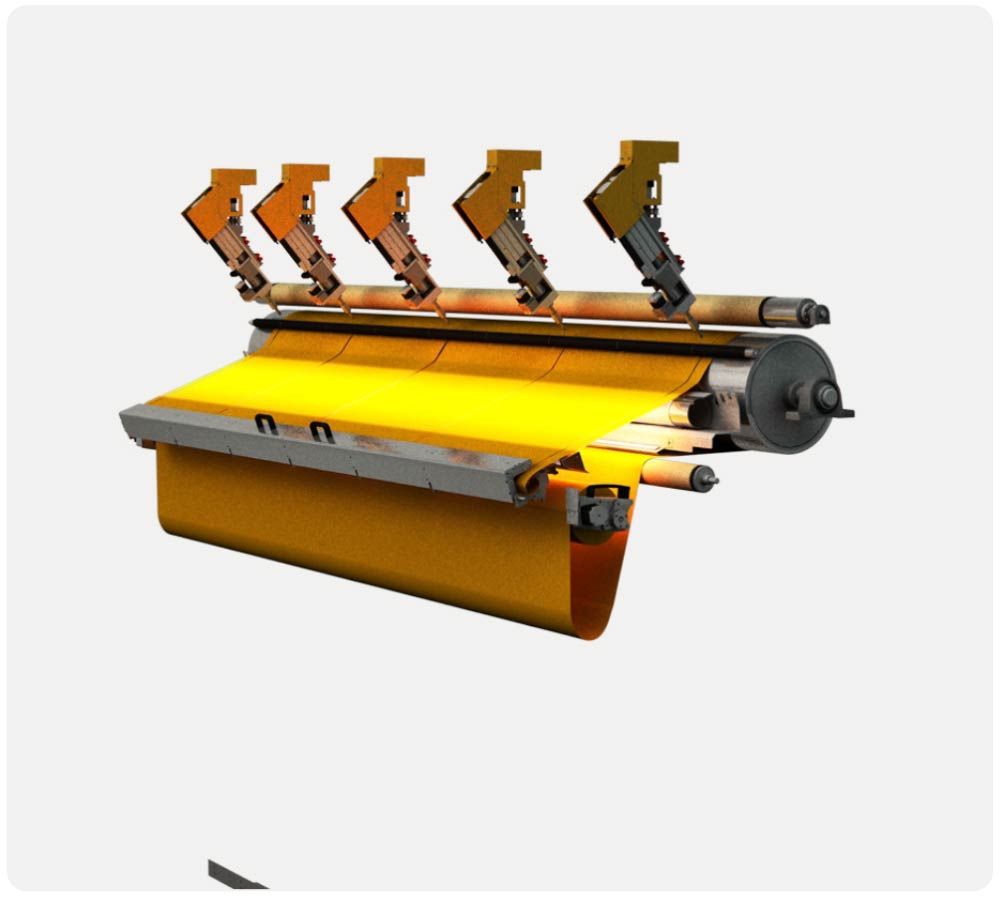

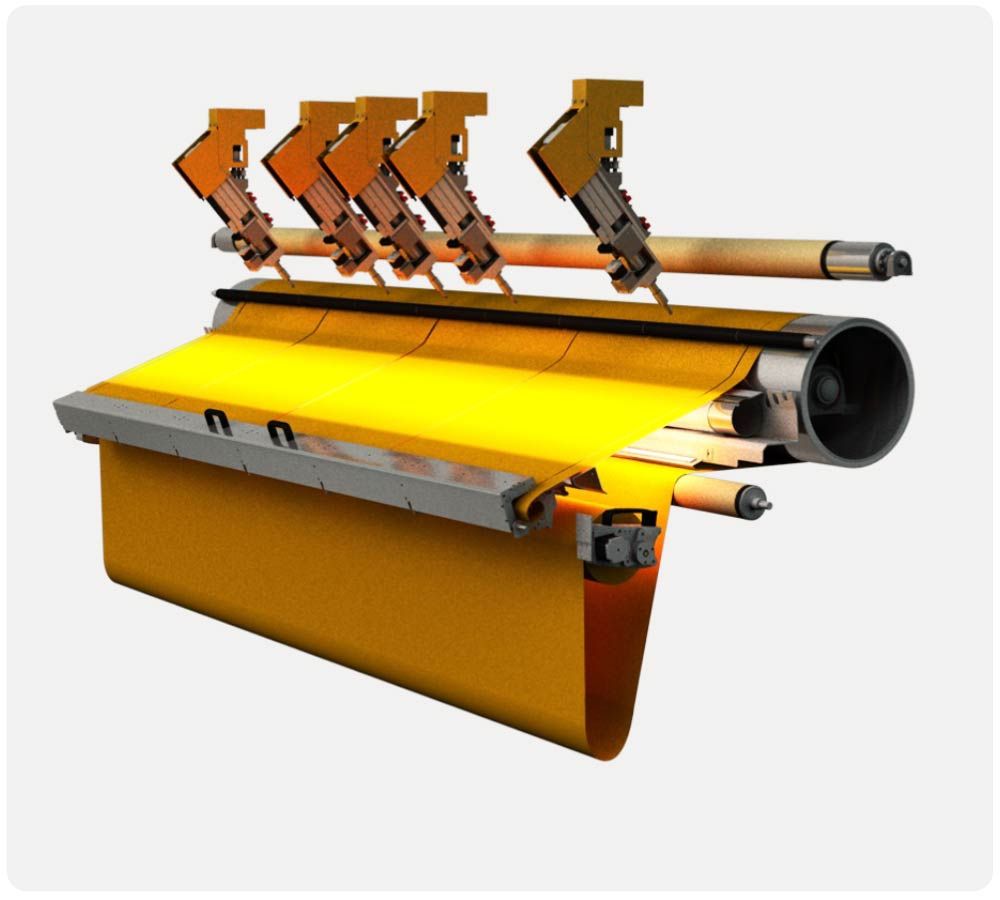

THREE AXES PER CUTTING HEAD

Each cutting head has three axes:

Positioning axis
Cutting axis
Rotation axis

This means that the textile can be cut to millimetre precision, with a programmable cutting pressure, even in different shapes.

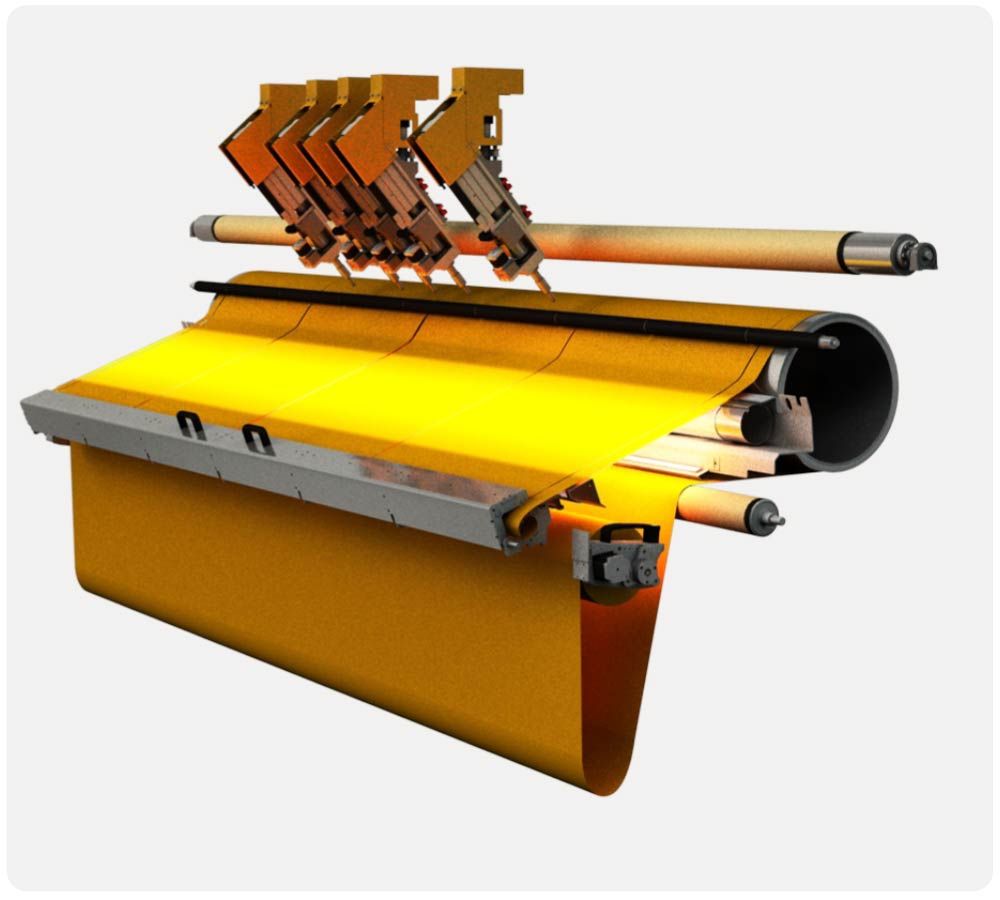

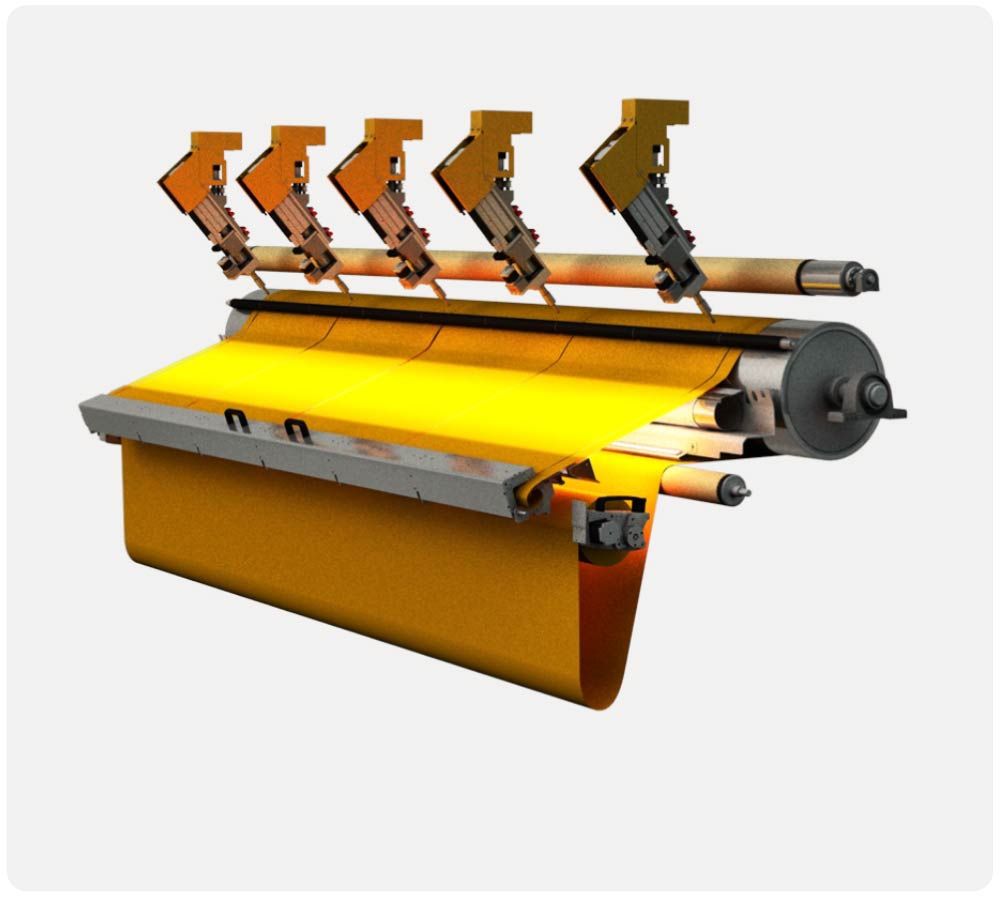

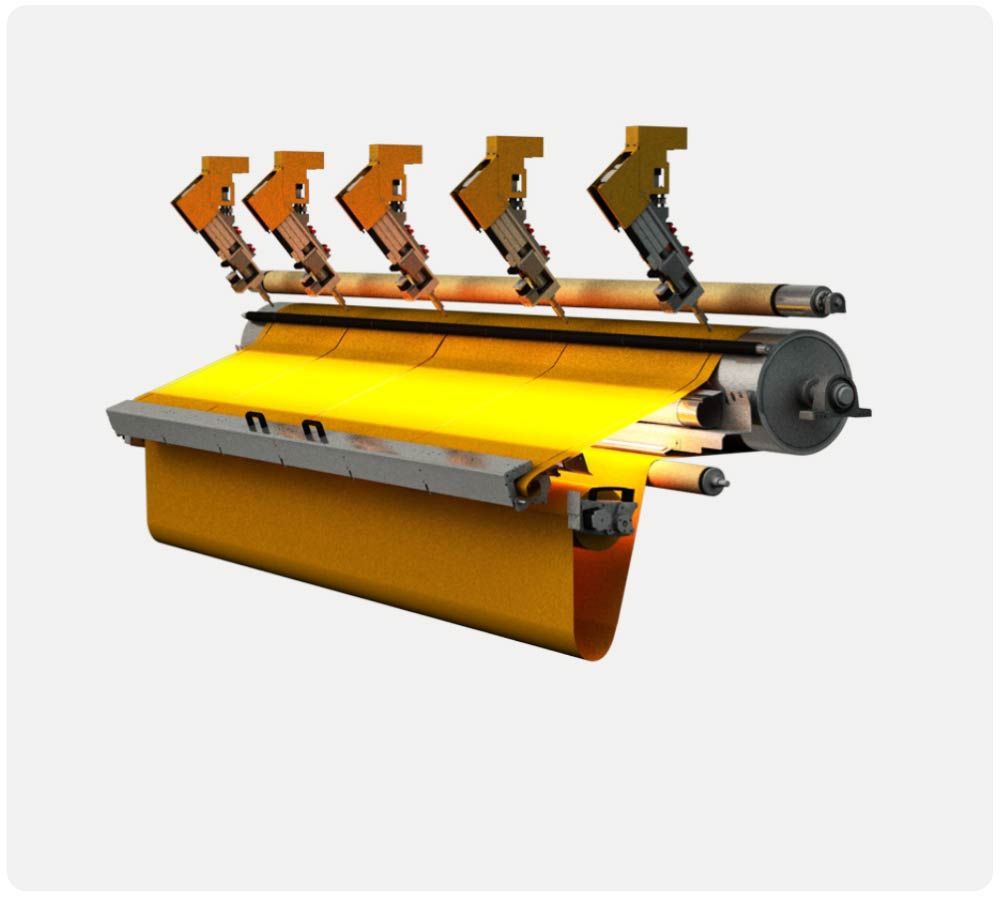

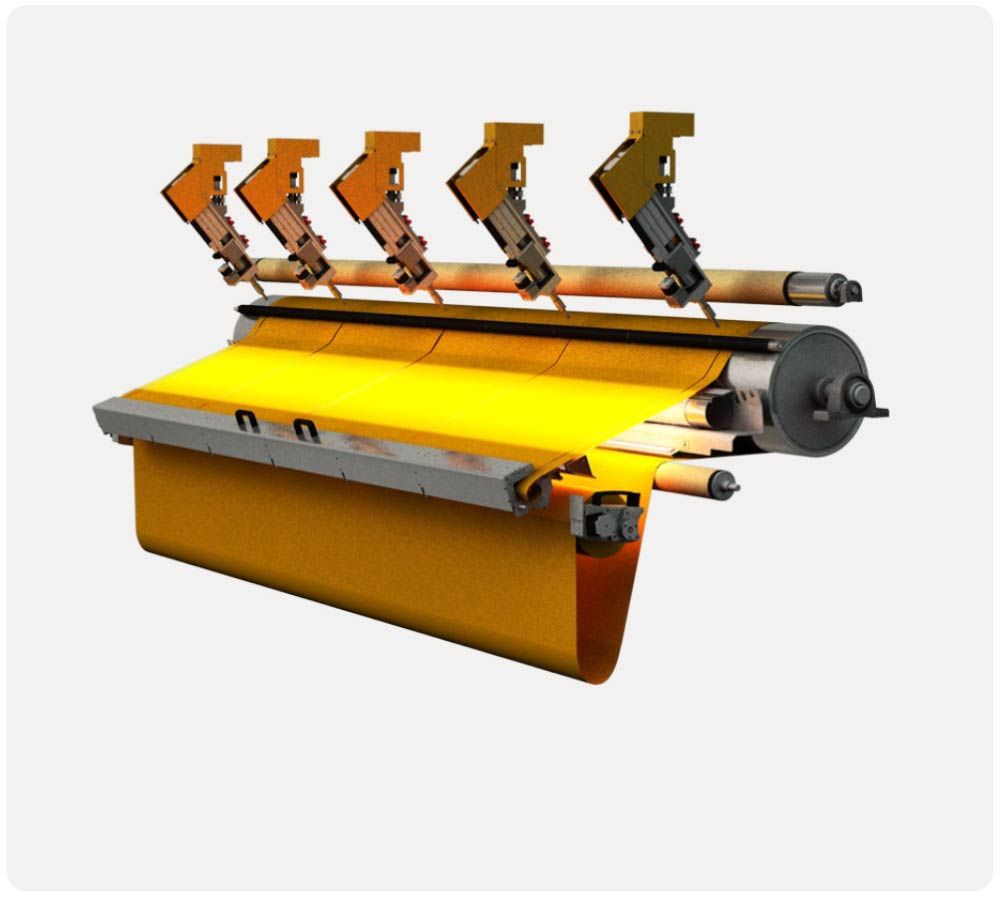

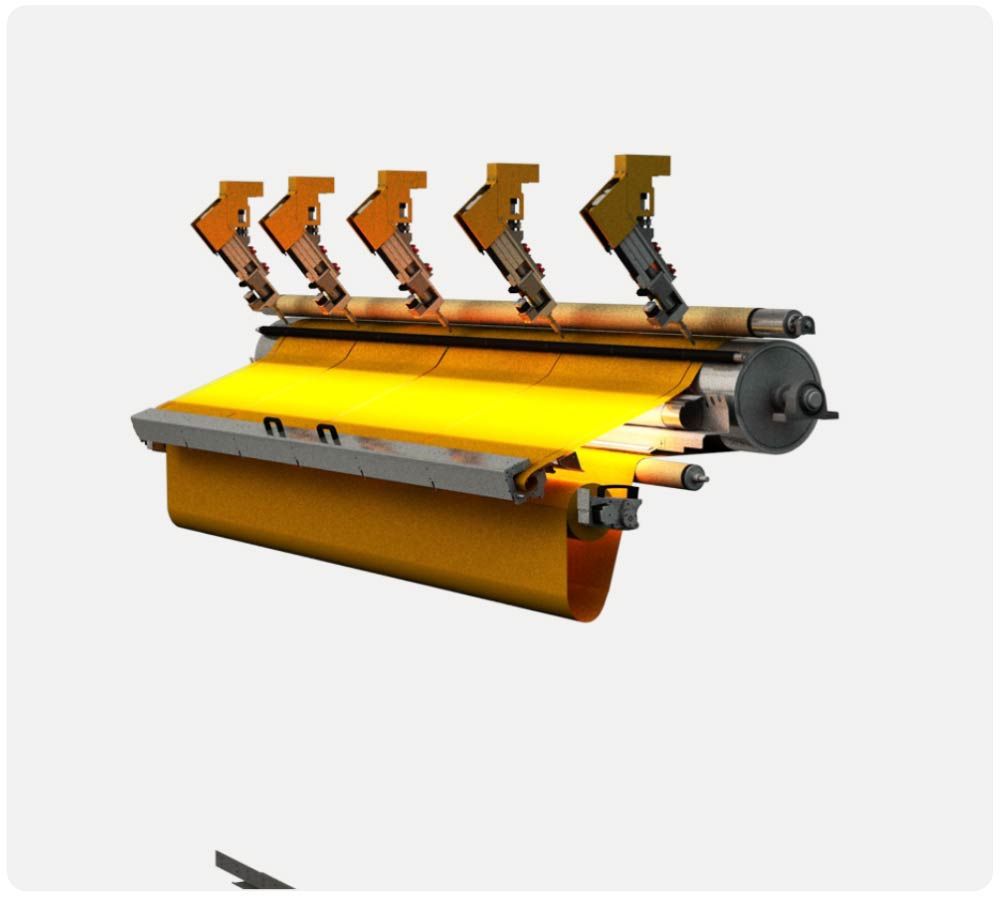

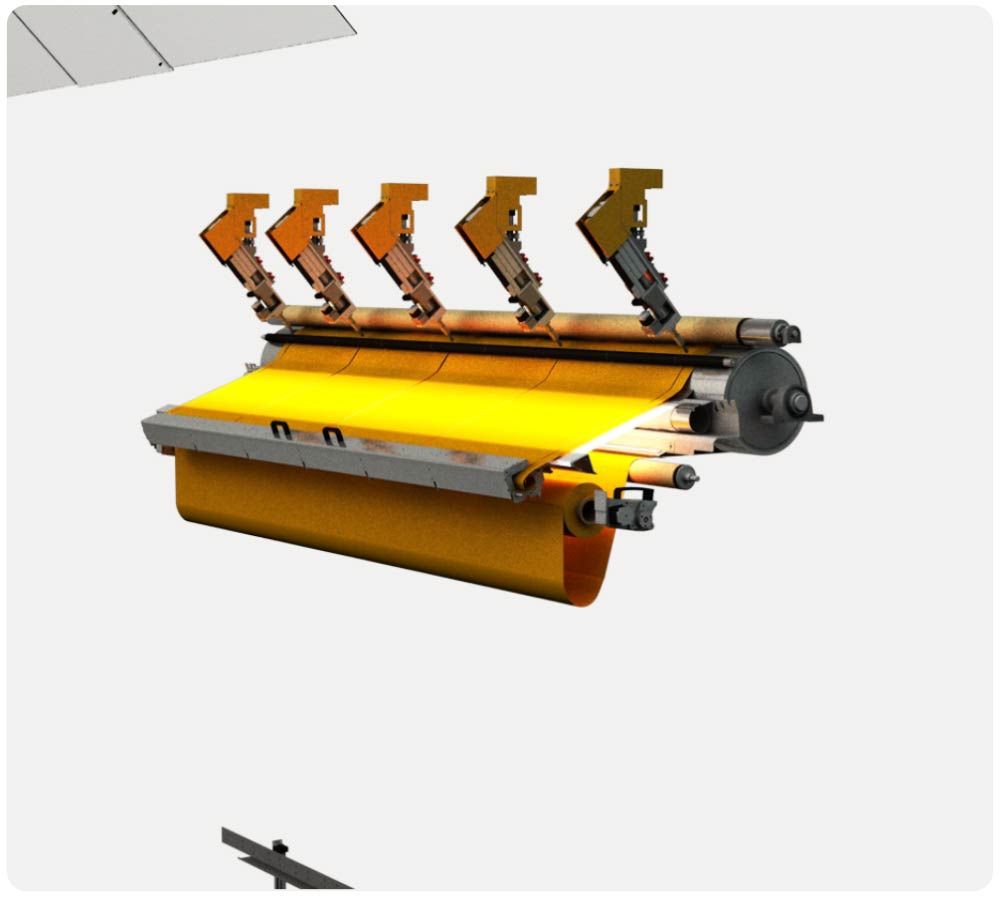

UP TO 6 x CUTTING HEADS

The ScreenCut can be equipped with up to 6 x cutting heads to cut several sheets from one roll at the same time.

NO OTHER MACHINE IS THAT FAST

2.3 x faster than conventional table cutting machine

Cutting cycle of only 38 seconds inclusive fabric handling process of a screen fabric with the average size of H 2.4m x W 2m.
The height of the fabric is cut from the width of the roll.

ALSO UNBEATABLE FOR ACRYLIC CUTTING

1.6 x faster than our predecessor model CUMASIX

Cutting cycle of only 1 min 53 sec inclusive fabric handling process of a standard awning with the average size of H 3m x W 4m.
(Left ScreenCut - Right Cumasix)

VARIANTS

The ScreenCut is available in various expansion stages.

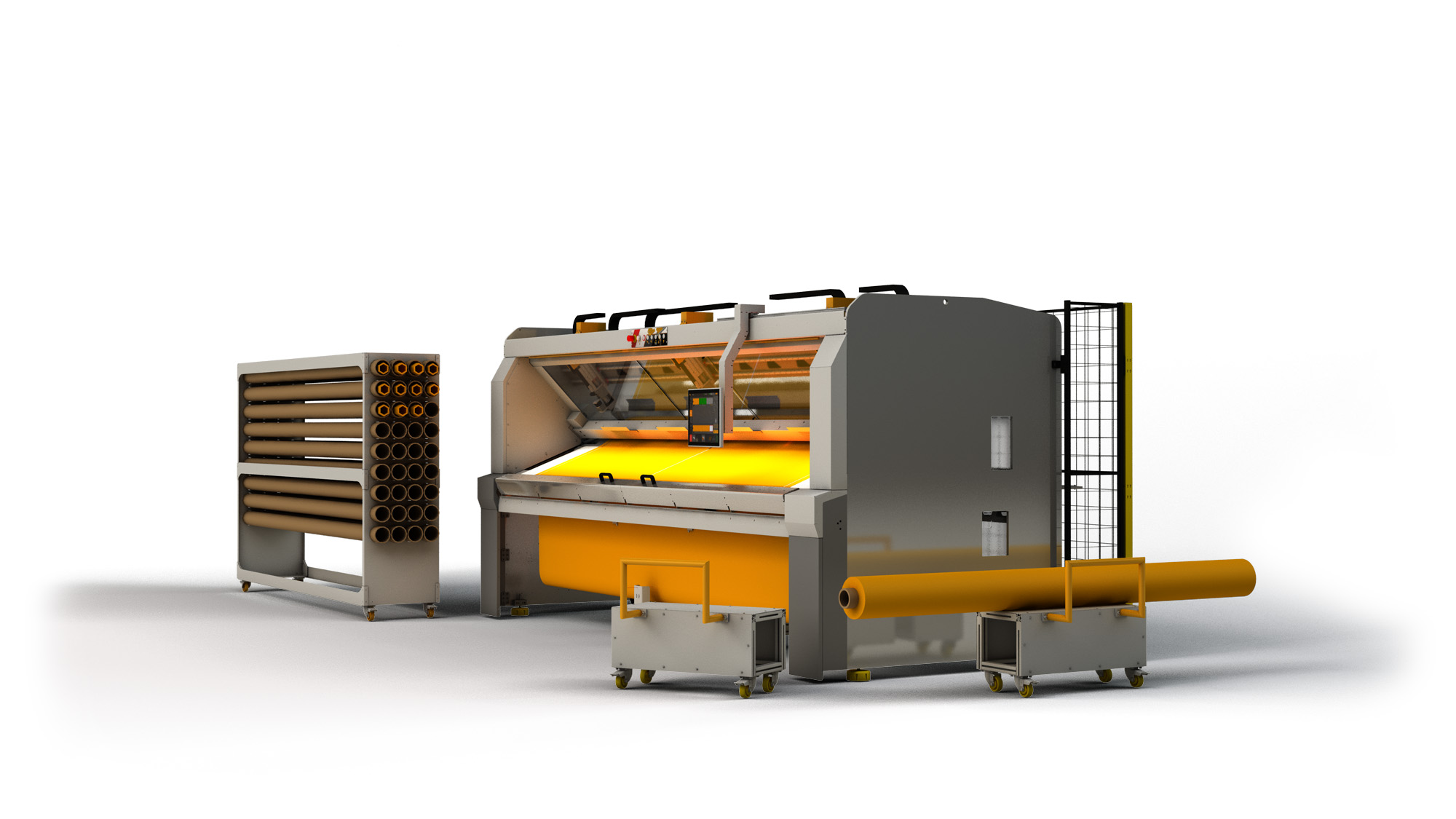

  • ScreenCut Solo

    With the ScreenCut Solo version, the fabric roll is moved manually into the machine from the front via a fabric roll carriage. By means of a built-in lift, the fabric roll is automatically lifted into the working area and can be fixed in the machine from there.

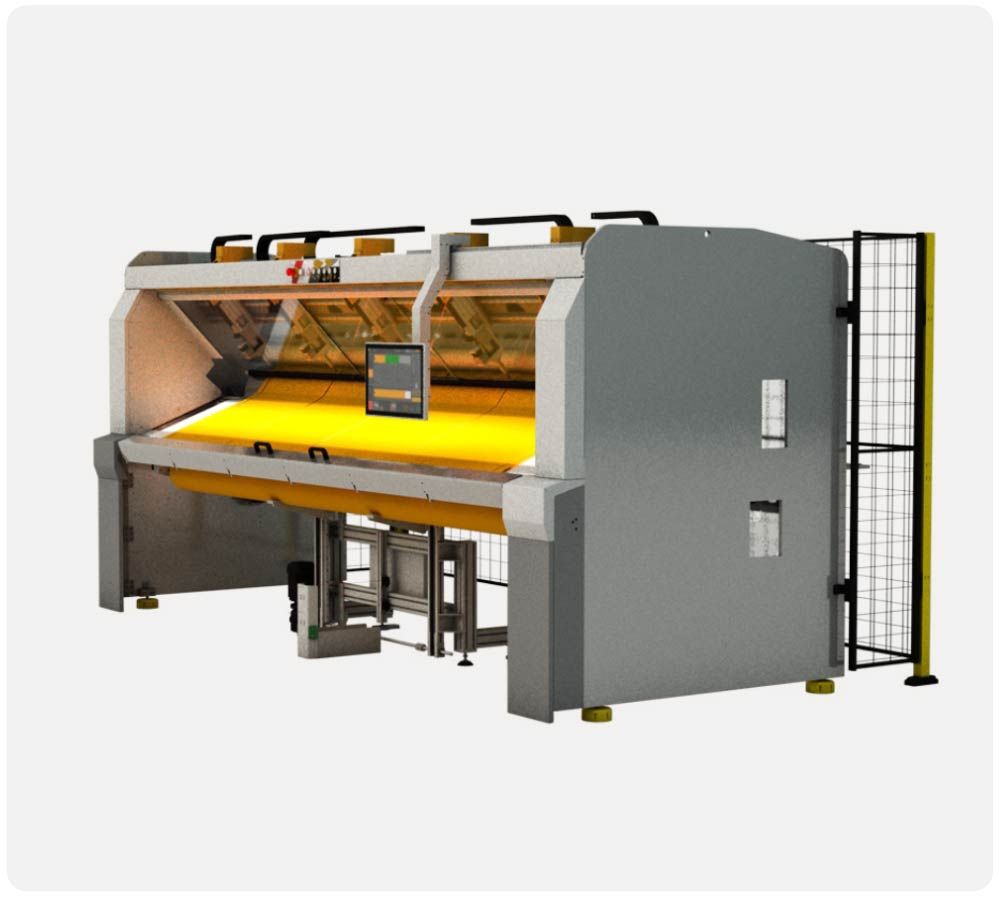

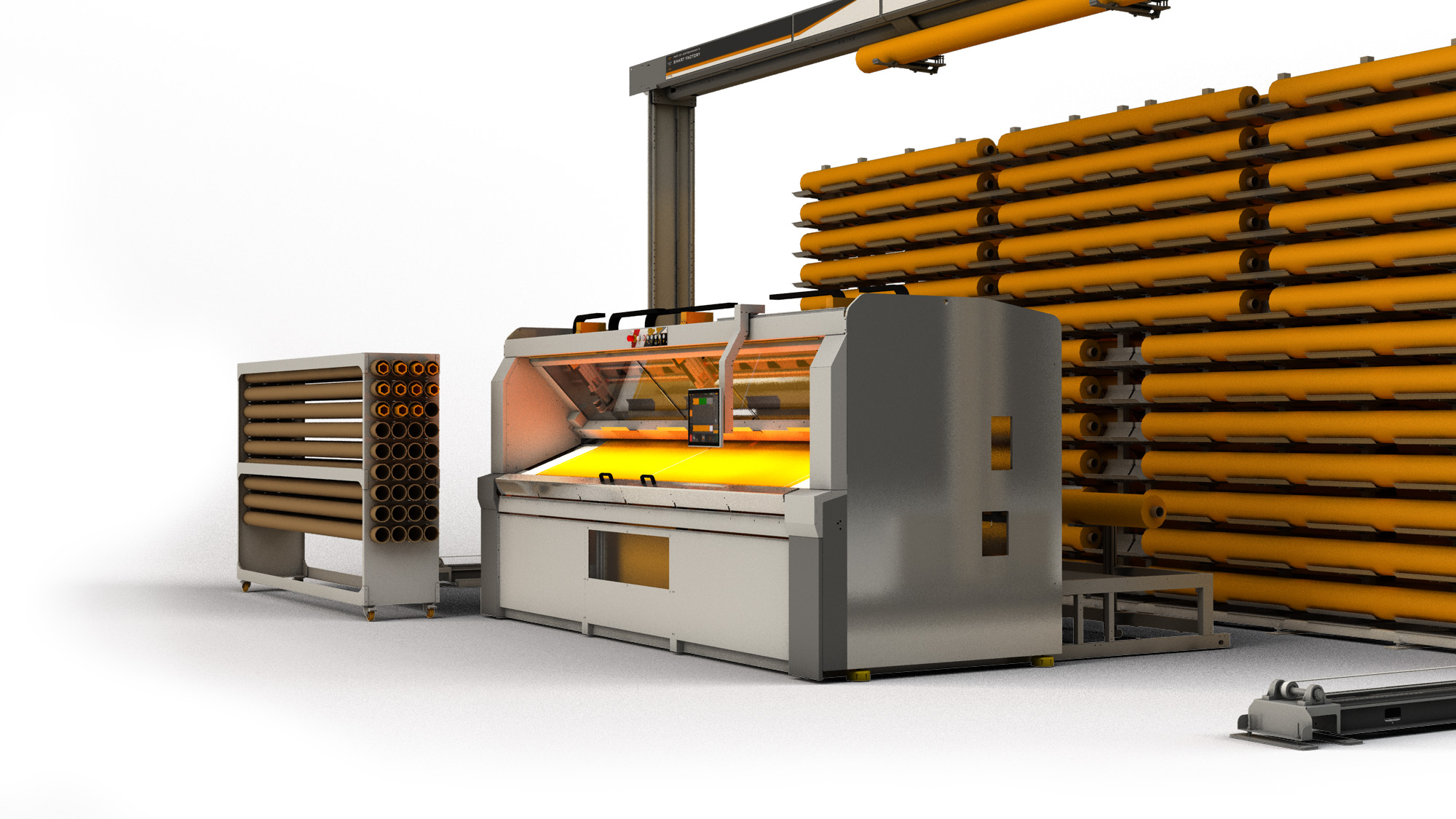

  • ScreenCut RLS

    The ScreenCut RLS variant works with an automatic fabric roll changer at the rear of the machine. The fabric roll changer has two levels - one level as infeed and one level as return.

    This means that there is hardly any waiting time, as the next roll can already be loaded from the RLS into the fabric roll changer.

    Mehr über das RLS erfahren...

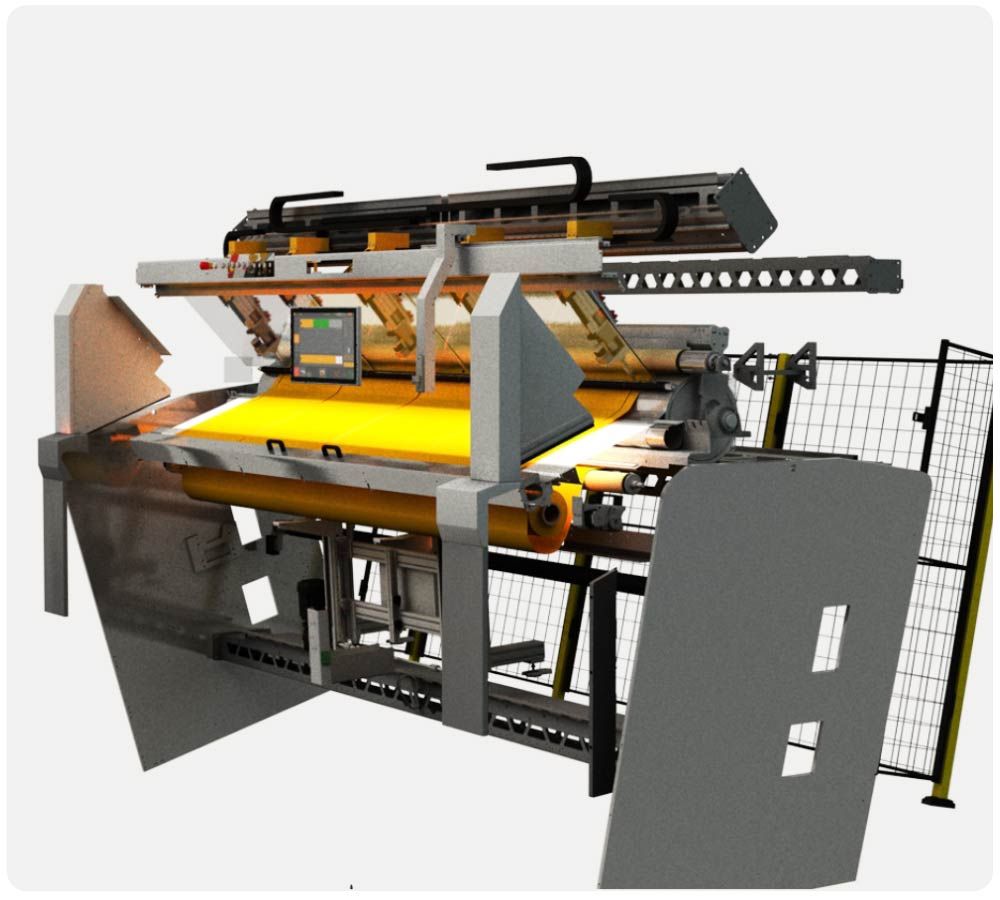

  • ScreenCut RLS with MHS

    The step towards "paperless production".

    The ScreenCut can also be connected to the "Material Handling System MHS". Here, the individual blanks are assigned to defined storage compartments of the fabric trolleys by means of a "Pick-By-Light" function.

    Mehr über das MHS erfahren...

TECHNICAL DATA

The data may vary depending on the version.

  • Operating Area

    Max. cutting width: 3,500mm
    Max. cutting length: not limited (depending on material and material weight)

  • Fabric Roll

    Fabric width: 420mm - 3.500mm
    Cardboard tube width: 800mm - 3,640mm
    Cardboard tube inner diameter: 45mm - 78mm

    Max. roll weight: 100kg
    Max. roll diameter: 280mm

  • Fabric Types

    Screen (e.g. Copaco Serge 600, Mermet Satiné, etc.)
    Soltis Perform 92
    Soltis Lounge 96
    Acrylic
    Polyester

    and similar textiles for interior and exterior sun protection

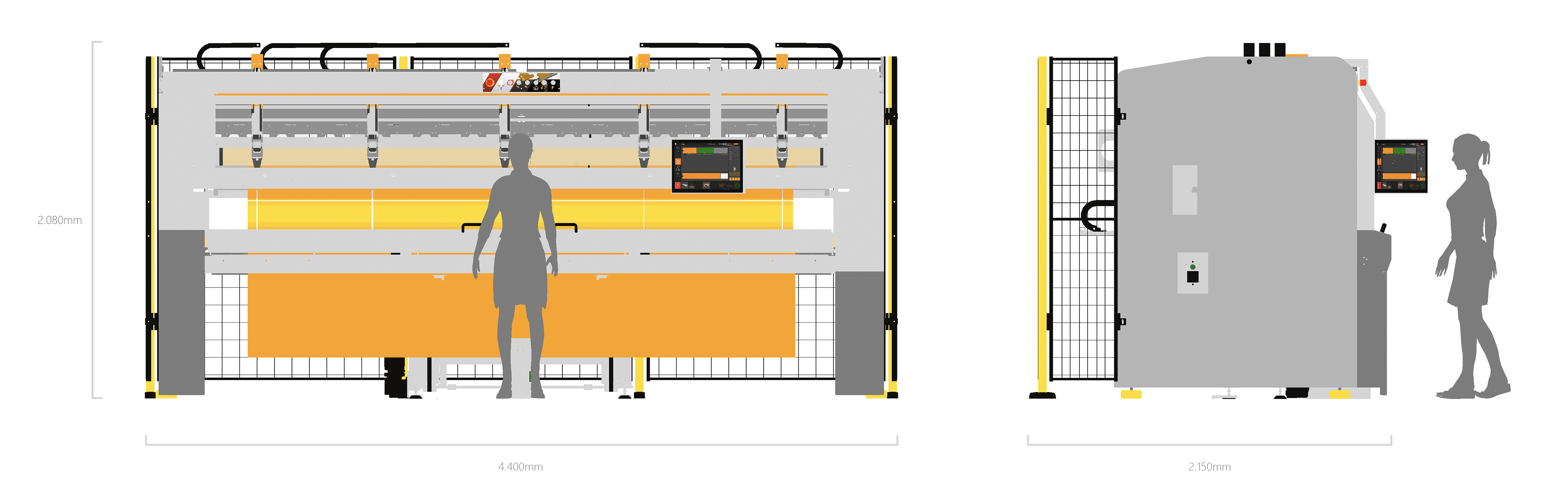

  • Dimensions and weight

    Height: 2,080mm
    Width: 4,400mm
    Depth: 2.150mm

    Weight: 2,500 kg (depending on equipment)

  • Connection

    Electrical power: 400V / 50Hz, 3 phases, 16A
    Pneumatics: Ø 8mm, stable 8bar, dry, oil-free (class 0), 120l/min
    Network: Ethernet (100/1000 Mbit)
