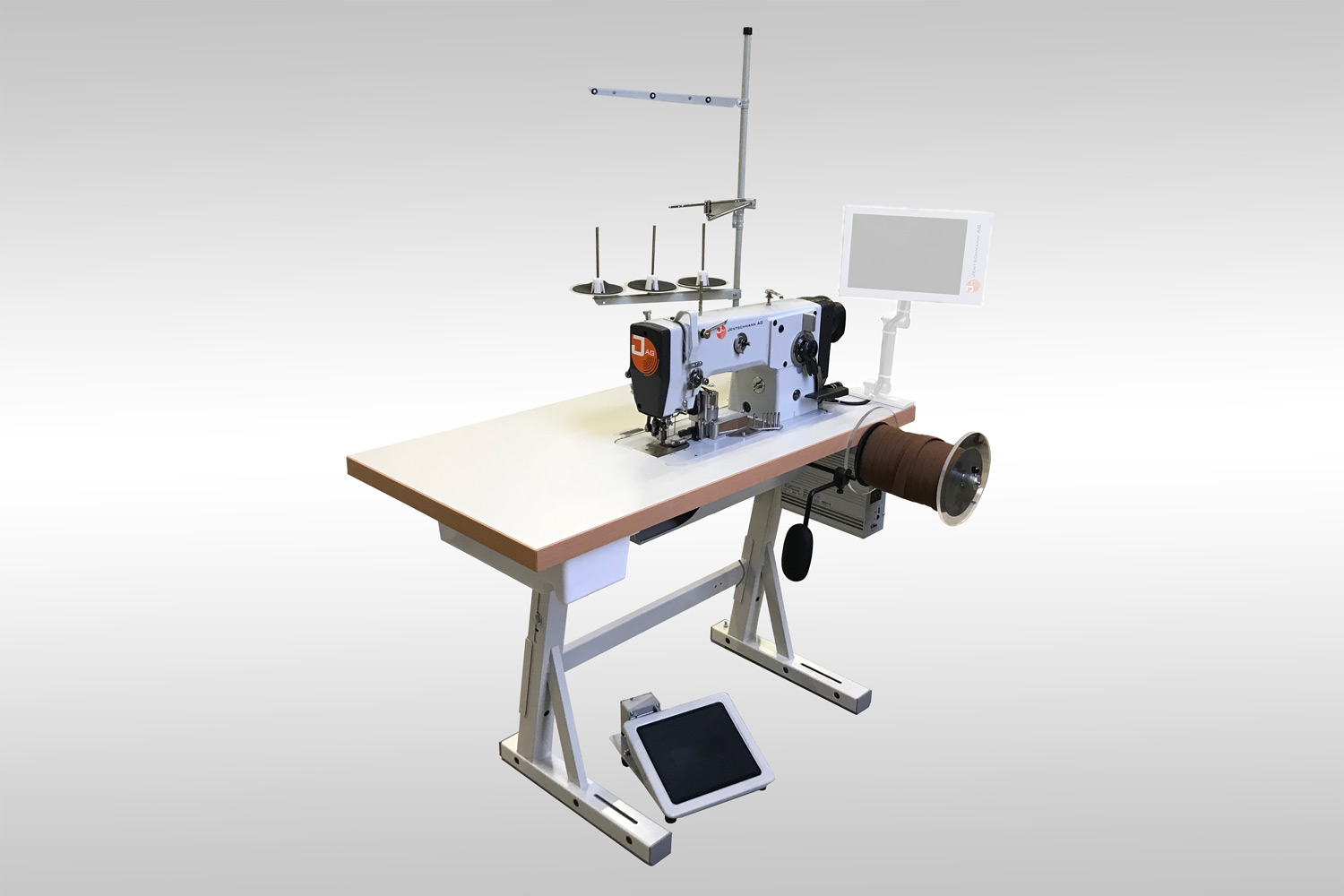

937 Volant

Special zigzag sewing machine for binding of awning valances. The stationary binder and the motor driven tape feeding ensures a smooth and tension-free feeding of the binding tape with absolute flat surface contact for the various loop radiuses and preventing any puckering of the seams.

Application

The 937 Volant sewing machine provides superior results on all types of zigzag seams and binding of edges on applications
like awning valances, carpets, tablecloths, umbrellas, etc.

Work operations

1 Picto edge binding zig zag

Characteristics

  • Modified special zigzag sewing machine with upper and bottom feed
  • Motor driven tape feeding device
  • Zigzag width adjustable
  • Changable to straight stich
  • Thread cutter
  • Precision sewing speed control
  • Max. speed approx. 3.200 rpm
  • Stand with working table 120 x 50 x 4 cm and drawer
  • Fixed guide for 20 mm tape
  • Tape roll holder
  • Power supply 230 V single phase

Options

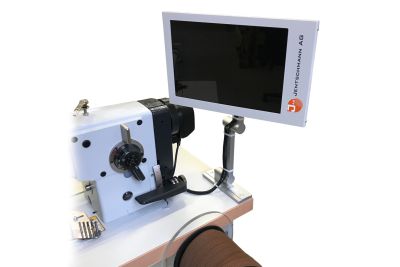

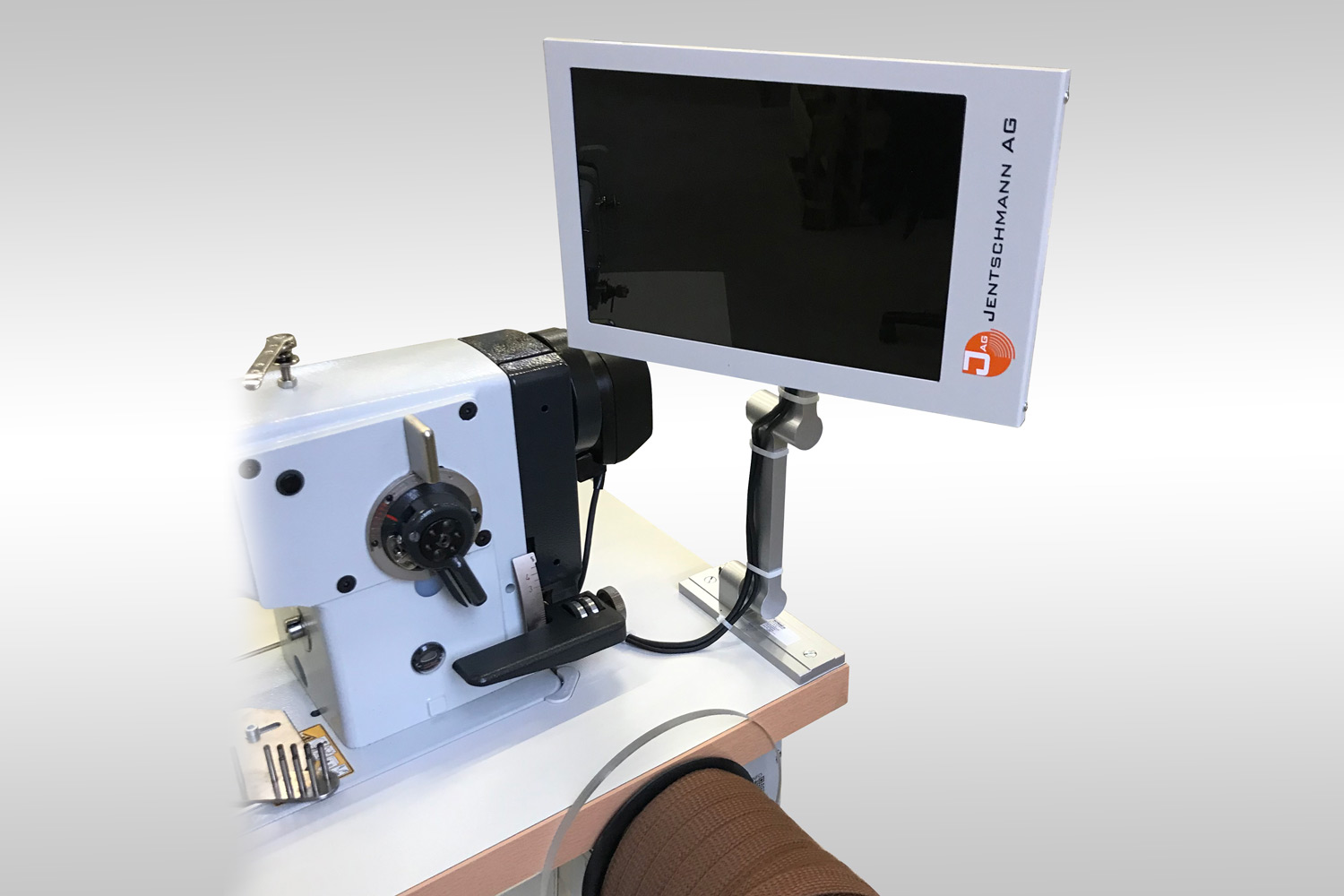

Connection via access point to the Jentschmann NODE production software to display the order information
